Computer Aided Engineering Analysis (CAE) Services
Our team expertise in the simulation and evaluation of mechanical systems allows our engineers to deliver complete solutions for requirements and specifications that span engineering disciplines. Our analysis group is composed of members well versed in the application of different analysis methods allowing our team to identify and mathematically characterize the contributing factors needed to accurately simulate the performance of complex mechanical systems. Using industry-leading CAE simulation tools, coupled with our model development expertise, we provide our customers with a single source solution capable of solving problems in the following domains:
- Static and dynamic mechanical evaluation
- Thermal, transient, and steady state
- Computation fluid dynamics (CFD)
- Aeroelastic stability and coupled loads
- Optimization with complex and weighted constraints
- Crash simulation of nonlinear systems
- Optical system beam tracking

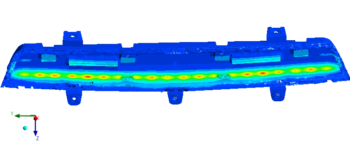

Temperature contour plot | Housing
Maximum observed temperature at the Housing is 51.8 C

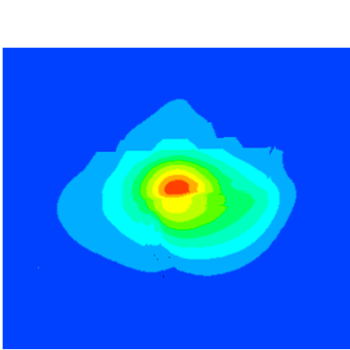

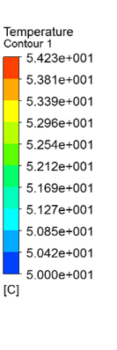

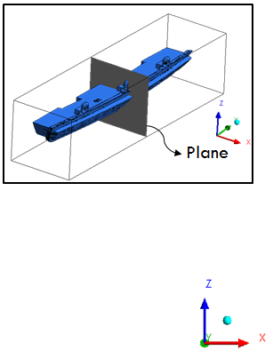

Temperature contour plot | Cutout section
Maximum observed temperature at the Middle plane is 54.2 C
